Camera Warp
7 post process materials for lens distortion and other camera warp effects.
- Commercial License
- FREE Lifetime Updates
- And 15+ other features and benefits!
Buy on Fab
Buy on Gumroad
Information
Camera Warp is a pack of 7 post process materials for Unreal Engine that changes the camera view in different ways. It gives you tools for lens distortion, screen duplication, camera shake, frame compression, and other warped screen effects. It works well for both first- and third-person gameplay moments, impact effects, scoped views, surreal events, and any scene where you want the image to feel distorted or altered.

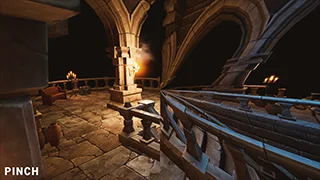

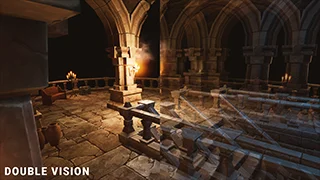

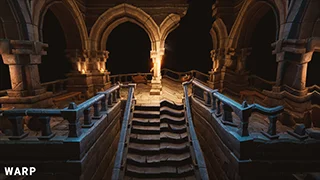

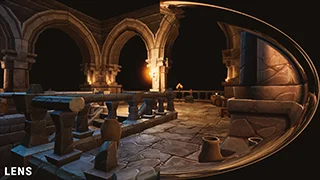

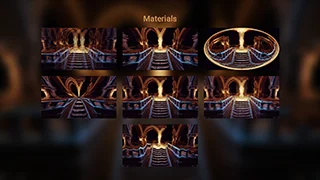

Included Materials
Included Files
Total Files- 23
Total Size- 200 kB
Post Process Materials- 7
Material Instances- 7
Textures (1K)- 1
Levels- 1
Materials- 1
- Material Instances
- 5
UI- 1
All files and assets adhere to Unreal Engine naming conventions (such as, T_Texture, BP_Actor) and are organized in a clear, consistent folder structure.
Compatibility
Supported Engine Versions
Unreal Engine 5.0+
UEFN
Supported Editor Platforms
Windows
Mac
Linux
Supported Target Platforms
Windows
Mac
Linux
VR
PlayStation
Xbox
Nintendo Switch
Steam Deck
Android
iOS
Supports current-generation consoles.
Supported Technologies
Nanite
SupportedLumen
SupportedMegaLights
SupportedNiagara
SupportedPath Tracer
SupportedSubstrate
SupportedChaos
SupportedPCG
SupportedReplication
SupportedSupported Rendering Features
Rendering Techniques
Graphics APIs
Upscaling
Performance
Performance Score
A++
(Extremely Lightweight)
This score shows how much the product impacts your project's performance. A higher score indicates better performance and a smoother overall experience, with A++, A+, and A ratings having little to no impact on FPS (frames per second).
The performance score is based on the product's Frame Impact (Average) value.
Benchmark Configuration:
- Test project: Lyra Sample Game – Expanse level
- Engine Version: Unreal Engine 5.7
- Build type: Packaged Development Build
- Graphics settings: Epic scalability preset (the highest settings in the Lyra Sample Game)
- Rendering settings: DirectX SM6, Unreal TSR, Deferred Rendering
- Screen resolution: Native 4K (no upscaling)
- Performance profiling: Unreal Insights Trace
- Test length: Three 60-second playthroughs
- OS: Windows 11 Pro
We use hardware from 2016, 2019, and 2025 to measure performance. The official performance score is based on 2025 hardware. Older hardware is used to ensure compatibility and reduce the risk of unintended behavior. You can view the hardware details for a complete list of the systems we use.
Possible performance scores:
- A++: Extremely Lightweight
- A+: Very Lightweight
- A: Lightweight
- B: Light
- C: Medium–light
- D: Medium
- E: Medium–heavy
- F: Heavy
For asset packs, the overall score is determined by the average score across all benchmarked assets.
Frame Impact (Average)
0.01271 – 0.01540
ms
Frame Impact values are derived from the product's average GPU frame time contribution. Performance metrics were captured and profiled using Unreal Insights Trace.
Frame Time is the total elapsed time to complete and present a frame, including CPU execution, GPU execution, and any synchronization or waiting between them. Frame Time (ms) = 1000 / FPS:
- 120 FPS ≈ 8.33 ms per frame
- 60 FPS ≈ 16.66 ms per frame
- 30 FPS ≈ 33.33 ms per frame
As Frame Time increases, FPS decreases.
At a 120 FPS target (8.33 ms per frame), our products typically impact frame rate by ~0.1 – 2 FPS. These numbers come from a benchmark designed to push our products to their limits. In most cases, you can expect similar or better performance in your own projects, depending on your content and whether you're CPU- or GPU-bound.
By default, Unreal Engine renders below native resolution using TSR, but our benchmark uses 100% Screen Percentage at native 4K to measure worst-case Frame Impact. For more information about the benchmark configuration, see the Performance Score.
For asset packs (multiple assets), a value range (e.g., 0.034 – 0.076 ms) represents the minimum and maximum Frame Impact across the benchmarked assets.
- Implementation Indicates whether the product is implemented using Blueprint / Material nodes, written code C++ / HLSL, or a combination of both.
- Material nodes
- Parameters Number of exposed parameters to allow easy real-time adjustments. A range indicates the minimum and maximum number of parameters across the product.
- 1 – 7
- Instruction Count (PS/VS)
Total number of instructions executed by the GPU for the Pixel Shader (PS) and Vertex Shader (VS) across the product. A material that uses static switches can have a range of instructions rather than a fixed value. A range indicates the minimum and maximum number of instructions across the possible material variants.
Default Materials (SM6, in UE 5.7) have a default instruction count of:
Pixel Shader: 179 instructions
Vertex Shader: 148 instructions
Post Process Materials (SM6, in UE 5.7) have a default instruction count of:
Pixel Shader: 84 instructions
Vertex Shader: 148 instructions - 85 – 110 / 153
- Texture Samplers
Number of unique texture samplers used in the materials across the product. A material that uses static switches can have a range of texture samplers rather than a fixed value. A range indicates the minimum and maximum number of texture samplers across the possible material variants.
Scene Textures also contribute to the sampler count. - 1 – 2
- Memory Size
Memory used by the benchmarked asset once it's loaded and ready for use. This includes all referenced dependencies (textures, materials, meshes, etc.).
A range indicates the smallest and largest asset sizes included in the benchmark.
Size references for empty assets with no dependencies:
• Material: 43.5 KiB
• Post Process Material: 51.3 KiB
• Blueprint Actor: 4 KiB
Memory size may vary between Unreal Engine versions. A memory size above 15 MiB is common for many assets. - 27.2 KiB – 759.4 KiB
- Disk Size
Storage space used on disk by the benchmarked asset. This includes all referenced dependencies (textures, materials, meshes, etc.).
A range indicates the smallest and largest asset sizes included in the benchmark.
Size references for empty assets with no dependencies:
• Material: 8.3 KiB
• Post Process Material: 9.1 KiB
• Blueprint Actor: 23.3 KiB
Disk size may vary between Unreal Engine versions. A disk size above 30 MiB is common for many assets. Disk size is mostly relevant for mobile projects and can often be ignored for PC or console projects. - 11.1 KiB – 131.2 KiB
- Benchmark hardware System hardware configuration used to determine the performance score and evaluate the impact on average frame time.
- Hardware details
Hover over or click a label to see more technical details.
Changelog
- 1.3 (Current – 2026-03-19)
- Updated the Gumroad product page.
- 1.2.1 (2026-03-02)
- Added UEFN support.
- 1.2 (2026-02-26)
- Improved the post process material code and reduced dependencies.
- 1.1.1 (2026-02-03)
- Updated the product description and clarified parameter descriptions.
- 1.1 (2026-01-16)
- Migrated product to the new website.
- 1.0 (2023-07-20)
- Initial release.
Frequently Asked Questions

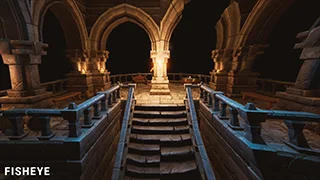

Does the fisheye lens produce a true 180° image of the scene?
The included fisheye lens shader can create a near full fisheye effect, with a maximum scene view of 170°. It works by warping the image UVs.
A true 180° view is not supported by default because of engine and field-of-view limitations. Achieving the full 180° would require additional code support or a different camera base class.
